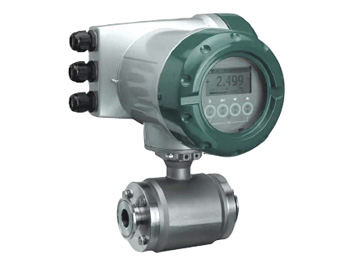

MAGMAX EGM 6300C is the compact type electromagnetic flowmeter with a converter mounted integrally on a primary head.

The sanitary compact flowmeter consists of a primary head EGS6000 with sanitary PFA lining and a high performance converter EGC 300.

The PFA lining material for liquid contact surfaces conforms to FDA (Food and Drug Administration in U.S.A.) requirements.
The flowmeter is certified by EHEDG (European Hygienic Equipment Design Group) and 3A (3 consolidated bodies on milk sanitary in U.S.A.).
The ISO clamp connection adopted as a standard practice enables its easy mounting on piping and dismounting.
Very small flow rate can be covered:  Min. 0 - 0.5 L/h [Water] can be measured.
 Alarm output option available:    In addition to local indication type, alarm output version is also available.
 Compact design:   Easy installation onto instrument panel.
 Safety for high temperature and pressure: All metallic material construction covers tough applications!


Measuring object Liquid (Conductivity: To be 1μS/cm or more(To be 20 μS/cm or more for water))
Excitation Square wave
Fluid temp. -40 to +120℃
Note: When cleaning the flowmeter with steam, use steam with lower temperature than 140°C for less than 30 minutes.
Fluid press. -0.098 to +0.98 Mpa
Flow range Max. 0 to 339 m3/h
Min. 0 to 0.53 m3/h
Flow velocity range Max. 0 to 12 m/s
Min. 0 to 0.3 m/s
Nominal size 25, 40, 50, 65, 80, 100 mm
Process connection ISO 2852 Clamp
Wetted part material Liner: PFA
Electrode: Hastelloy®C4 [Standard] [Option] Stainless steel SS316L, Titanium
Process adapter: Stainless steel SS316L
Gaskets for process adapter: Silicone rubber
Housing material Primary head housing: Stainless steel SS304
Converter housing: Aluminum alloy Anti-corrosive painting
Painting Polyurethane resin painting
Measuring accuracy Indication and pulse output:
For velocity0.33m/s: ± 0.5% of reading
For velocity < 0.33m/s: ± 0.2% of reading + velocity error of ± 0.001m/s
Current output: Additional error of ± 0.01mA be added onto display and pulse output.
Indication Blue, dot matrix LCD (With backlight)
The touch sensor system by infrared sensor 3-page composition, Indication change of one to three lines is possible for the 1 or 2nd page by data setup.
Contents of indication:
Flow rate, velocity, total flow, conductivity, coiltemperature, self-diagnosis result, and setting menu etc.
Output Current output: 4 to 20mA DC
Pulse output: Open collector output
Standard functions Customer's free measuring unit setting function, Automatic zero adjustment function
Bi-directional flow measurement function, Double range measurement function
Excitation current frequency switching function, Self diagnosis function, Memory save function for power failure, Testing function, HART communication
Power supply 100 to 230 V AC (85 to 253 V AC)
24 V DC (9 to 31 V)
Explosion proof IP66/67(IEC 60529)
