Basic Code
K-600
Type
Vertical type, direct indication, Lantern type

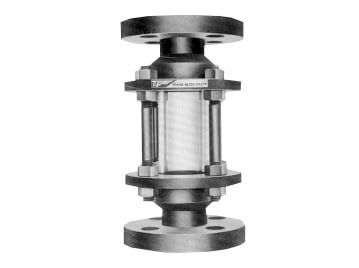

External view
Measuring fluid
Liquids
Fluid pressure
Max. 0.4MPa 65A to 125A Max. 0.5MPa 40A and 50A Max. 0.7MPa 25A or smaller
Fluid temperature
Max. 80°C for NBR Gasket Max.120°C for FPM Gasket
Process connection
15A to 125A JIS10K Flange (Option: JIS5K, ANSI Class flange)
Standard material
Body:SS400/GP,SUS304,SUS316 Flange:SS400, SUS304, SUS316 Sight glass:Heat-resistant glass Gasket:NBR(FPM)
