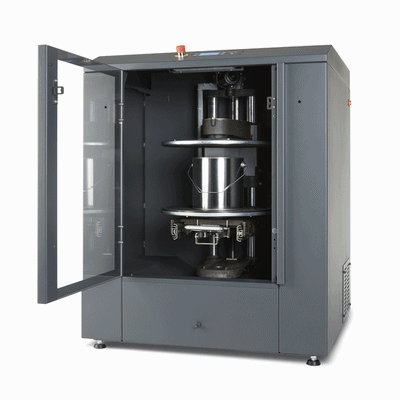

Máy trộn sơn GA480

General
  • Medium and high volume paint turnover
Can specs
  • Max. product weight: 40 kg
  • Min. height: 80 mm
  • Max. height: 400 mm
  • Plate diameter: 380 mm
  • Suitable for oval cans
  • Mixing of multiple cans possible
Footprint & weight
  • HWD: 101 x 82 x 81 (79) cm
  • Weight: 240 kg
Clamping
  • Automatic, dedicated control
Usage
  • Rotating swing door (to be mounted left or right)
  • Sliding door optional
  • Loading plate fully extractable
  • Cradle stops automatically at unloading postion
  • Display user interface: auto button, graphical display, easy to adjust
  • Variable speed (slow start), between 230 and 100 rpm, dynamic balance
Service
  • Removable top cover and back panel
  • Splash guard to protect from paint spillage, replaceable rubber on bottom clamp plate, service control via FFM Maintenance and/or display, USB port on outside
  • 750 Watt AC motor
Installation
  • Wheels and feet at bottom, built-in loading ramp
  • Power supply:
    - 230V-50/60Hz or 115V/60Hz
    - Standard removable net entry at the back
    - Power switch at the side
