Glass Tube Type Oriflo Meter O-100 Series

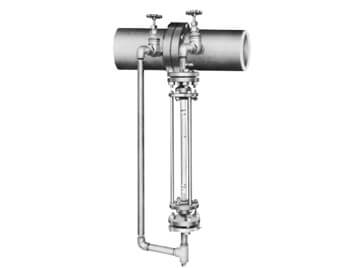

O-100 is series of Orifice bypass flowmeter. The flow through the main pipe is by -passed by an orifice plate. The bypassed flow is indicated by small sized glass tube variable area flowmete flow measurement through main pipe.

· Economical measurement even for large size lines.

· Any flow direction of horizontal, vertical including top to bottom possible.

· No Utility supply needed for local indication.

· Alarm contact optionally available.
Measuring object Liquids(Viscosity: up to 3mPa•s) and Gases
(Not suitable for slurry and steam)
Flow range Liquids(in case of density:1.0g/cm3and viscosity: 1.0mPa•s)
Max. 600 to 3000m³/h (Size: 500mm, at DP=60kPa , Stainless float)
Min. 0.35 to 1.4m/h (Size: 50mm, at DP=10kPa , Resin float)

Gases(in case of temperature: 0°C and pressure: 0MPa)
Max. 9000 to 45000m³/h(nor) (Size: 500mm, at DP=20kPa)
Min. 6.25 to 25m³/h(nor) (Size:50mm, at DP= 5kPa)
Fluid pressure Max. 1MPa
Fluid temperature Max. 120°C(Allowable thermal shock 80°C)
Available tapping and sizes
D・D/2 taps: 100mm to 500mm
Corner taps(with orifice ring): 50mm to 500mm
Flange taps: 50mm to 500mm
Vena contracta taps: 200mm to 500mm
Main orifice: SUS304, SUS316
Orifice rings: SS400, SUS304, SUS316
Ball valve: C3771Be, SCS14A
Bypass piping: SGP, SUS304, SUS316
Bypass orifice: SUS304, SUS316
Gasket: Non Asbestos (for liquids)
NBR or FPM (for gases)
Flowmeter: Body: SCS14/SS400, SUS304 or SUS316
Tapered tube: Heat-resistant glass
Float: SUS304, SUS316, SUS316L (for liquids)
Alminium, PFA, PVC, SUS304 (for gase)
Indication accuracy ±3%F.S.
Alarm function Local indication
Local indication with alarm contact (1 or 2 point)
