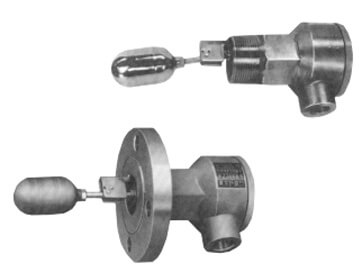

FB 5000 Float Type Level Switch

FB-5000 is a compact designed float type level switch. FB-5000 is installed on the tank side and alarm contact will be actuated when the liquid level reaches the set point. FB-5000 is installed onto tank side nozzle or through an external chamber which is led from the tank. The liquid contact portion and electronics are perfectly isolated for safety operation.

Very small flow rate can be covered:  Min. 0 - 0.5 L/h [Water] can be measured.
 Alarm output option available:    In addition to local indication type, alarm output version is also available.
 Compact design:   Easy installation onto instrument panel.
 Safety for high temperature and pressure: All metallic material construction covers tough applications!


Measuring object Liquids
Density range Min. density 0.7 g/cm3
(Special design for Density Min. 0.4g/cm3availlable on request)
Op. pressure Max. 2 MPa, but within flange rating
Op. tempperature -5 to 90°C
Process connection 40A flange or Rc1-1/2 thread
External chamber on request
(1) Weather proof (Equiv. to IP65)
(2) Flame proof (d2G4)
(3) Intrinsically safe (i3nG5) (Safety relay (EB3C) will be provided.)
Alarm contact SPDT Reed switch
Close for increase (HC, LO) or close for decrease(LC, HO) Factory set
Contact Capacity : AC 10VA / DC 10W
Repeatability : Within ±5mm
Material Body: SCS 14
Float/rod: SUS316
Flange: Carbon steel, SUS304, SUS316
Cover: AC2A
