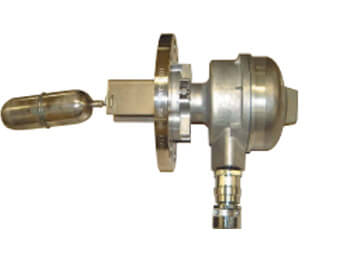

FB 7000 Float Type Level Switch

FB-7000 is a series of horizontal mount type, float level switch. FB-7000 is used for level alarm detection and pump control etc. FB-7000 has a magnet coupling system for isolation between tank portion and electronics side for safety.
Very small flow rate can be covered:  Min. 0 - 0.5 L/h [Water] can be measured.
 Alarm output option available:    In addition to local indication type, alarm output version is also available.
 Compact design:   Easy installation onto instrument panel.
 Safety for high temperature and pressure: All metallic material construction covers tough applications!


Measuring object Liquid level or interface of two different liquids
Density range Liquid level Min. 0.35g/cm3
Two liquid interface (Min. Diff.) 0.2g/cm3
Op. pressure Max. 4MPa(within flange rating)
Option. Max. 7MPa
Op. temperature -170 to -20°C: With long fin
-20 to 150 °C: Without fin
150 to 200 °C: With alminum fin
200 to 300 °C: With long fin
300 to 400 °C: With long fin and special switch
Process connection Std. 3" flanges
: JIS5K, JIS10K, JIS20K, JPI#150, JPI#300, ANSI#150, ANSI#300

External chambers
1" flanges: JIS10K, JIS20K, JPI#150, JPI#300, ANSI#150, ANSI#300
1"SW, Rc1
Enclosure 1) Weather proof (Equiv. to IP65)
2) Flameproof (Exd II CT6)
3) Intrinsically Safe (TIIS i3nG5) (Safety relay (EB3C) will be provided.)
Alarm contacts Standard: SPDT microswitch
Opt.: SPDT × 2 microswitch
Contact capacity: AC250V, 5A / DC125V, 0.4A
Repeatability error: Less than 10mm
Material Float: SUS316L
Rod: SUS316(Option: SUS316L)
Flange: SUS304 or SUS316(Option: SUS316L)
Housing: Aluminum alloy
Exrernal chambers: CS, SUS304 or SUS316(Option: SUS316L)
