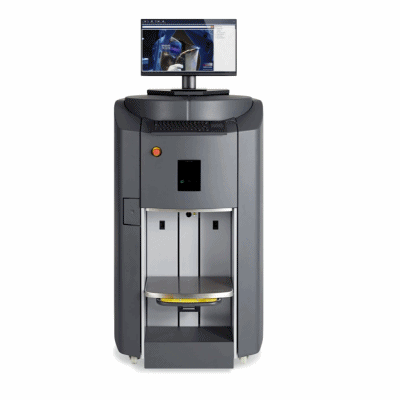

Máy pha màu sơn HA180

Máy pha màu sơn HA180

Tải tài liệu

Đặc điểm và tính năng

General

Automatic sequential
Colorants: Solvent based, water based, universal

Canisters

Up to 24 canisters
Sizes: 2.3/4.6 L
Material: Polymeric (POM)

Pump

Harbil® ZeroPurge™ Piston pump
Size: 40 ml
Flow rate: 0.4 - 0.5 l/min
Min. Dispense: 0.05 ml
Nozzle diameter: 2/4/6 mm
Stainless steel ball valve
Seals material: Teflon / Viton extreme / Viton
Zero Purge™
Copied calibration - no recalibration required

Nozzles

Air tight - integrated nozzle closures
Cleaning system: automatic brush & internal flush

Can table

Manual lift
Dimensions: 44 x 31 cm
Loading height: 36 cm
Max. can height: 46 cm
Optical can sensor

Dimensions & Weight

HWD 140 x 81 x 100 cm
Filling height: 131 cm
Packaging dimensions: 193 x 117x 98 cm
Weight (for transport): 180 - 200 kg

Power supply & Safety

110V +/- 10%, 50Hz/60Hz
230V +/- 10%, 50Hz/60Hz
CE certified

Options

Electric punch 46 mm, heating set, large can table plate, different colours (RAL).
