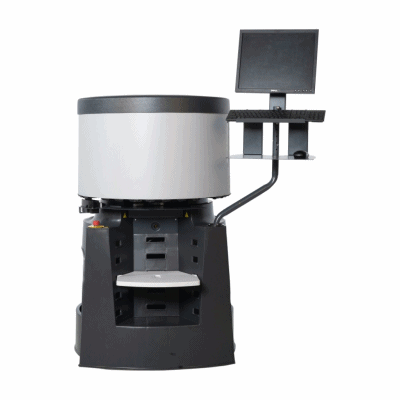

Máy pha màu sơn X-Smart XL

Máy pha màu sơn X-Smart XL

Tải tài liệu

Đặc điểm và tính năng

General

Automatic sequential
Water based, universal
Solvent based (optional)
Bi-directional turntable

Canisters

Up to 32 canisters
Material: POM; PP
Size: 16 x 2.3 Lt + 16 x 1.3 L
Click-on-click-off
Patented optimal stirrer design

Pump

Piston pump
Size: 43 ml
Flow rate: 0.5 l/min
Min. dispense: 0.077 (1/384 fl. oz.)
Nozzle diameter: 4 mm
Polymeric needle valve
Seals material: Viton, Viton Extreme
Calibration: 1st machine only
Subsequent machines copied calibration files. Calibration lasts machine lifetime

Nozzles

Airtight – integrated nozzle closures
Nozzle cleaning system: passive brush

Can table

Manual can shelf
Dimensions: 38 x 31 cm (WxD)
Can loading height: 26 cm
Max. can height: 48 cm
Optical can sensor

Dimension & weight

Net HWD 128x 83x 95cm
Filling height: 120 cm
Net weight: 73 kg

Software

PrismaPro easy to use
Local language compatible
Prisma-RT mobile app compatible

Maintenance & Operations

Low level (only purge & brush clean)
Low TCO
Ease of use
Minimal operator training
Visual LED error indicator

Power supply & safety

110V/230V +/- 10%, 50Hz/60Hz
