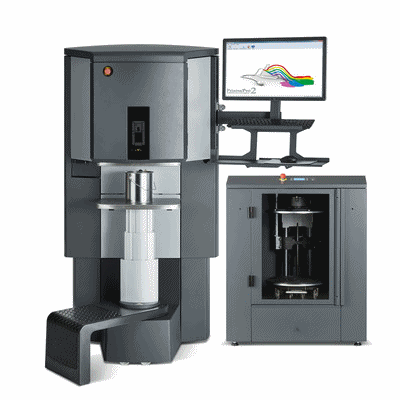

Máy pha màu sơn HA480

Máy pha màu sơn HA480

Tải tài liệu

Đặc điểm và tính năng

General

Automatic sequential
Solvent based, water based, universal

Canisters

Up to 16 - 32 canisters
Material: polymeric/stainless steel (optional)
Sizes: 2/3/6/10 l

Pump

Harbil® ZeroPurge™ Piston pump
Pump size: 100 ml
Flow rate: 0.8 - 1.0 l/min
Min. dispense: 0.05 ml
Nozzle diameter: 2/4/6 mm
Stainless steel ball valve
Seals material: Teflon / Viton extreme / Viton
ZeroPurge™
Copied calibration - no recalibration required

Nozzles

Air tight - integrated nozzle closures
Cleaning system: automatic brush & internal flush

Can table

Electric Lift
Dimensions: 44 x 31 cm
Loading height: 39 cm (low model) / 55 cm (high model)
Max. can height: 42 cm (low model) / 46 cm (high model)
Optical can sensor

Dimension & weight

HWD 151 x 88 x 96 cm (Low model)
HWD 171 x 88 x 96 cm (High model)
Filling height:
140 cm (Low model)
112 cm from step (Low model)
160 cm (High model)
132 cm from step (High model)
Packaging dimensions: 193 x 98 x 117 cm
Weight - Net/Gross 193-265 / 224-296 kg

Power supply & safety

110V +/- 10%, 50Hz/60Hz
230V +/- 10%, 50Hz/60Hz
CE certified, UL approved

Optional

Different colours (RAL).
