Máy pha màu sơn tự động

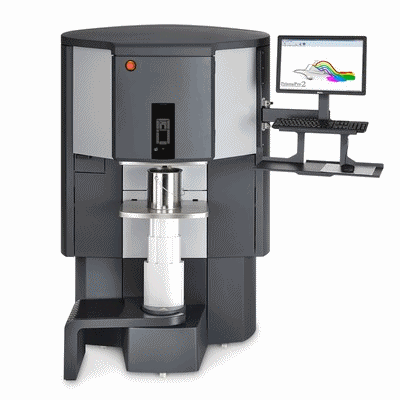

Máy pha màu sơn HA680
Tải tài liệu
Đặc điểm và tính năng
General
Automatic sequential
HA680 Solvent based, water based, universal
Canisters
Up to 16 - 36 canisters
Material: polymeric/stainless steel (optional)
Canister sizes 3/6/10/20 l
Pump
Harbil® ZeroPurge™ Piston pump
Pump sizes: 100 ml/300 ml
Flow rates: 0.8 - 1.0 l/min (100 ml), 1.5 - 2.0 l/min (300 ml)
Min. dispense: 0.05 ml (100 ml), 0.10 ml (300 ml)
Nozzle diameter: 2/4/6 mm
Stainless steel ball valve
Seals material: Teflon / Viton extreme / Viton
ZeroPurge™
Copied calibration - no recalibration required
Nozzles
Air tight - integrated nozzle closures
Nozzle cleaning system: brush monitor
Can table
Electric Lift
Dimensions: 44 x 31 cm
Loading height: 39 cm (Low model) / 55 cm (High model)
Max. can height: 42 cm (Low model) / 46 cm (High model)
Optical can sensor
Dimension & weight
HWD 151x115x125 cm (low model)
HWD 171x115x125 cm (high model)
Filling height:
140 cm (Low model)
112 cm from step (Low model)
160 cm (High model)
132 cm from step (High model)
Packaging dimension: 192 x 126 x 148 cm
Weight - Net/Gross 307 - 357 kg / 360 - 410 kg
Power supply & safety
110V +/- 10%, 50Hz/60Hz
230V +/- 10%, 50Hz/60Hz
CE certified, UL approved
Options
Electric punch 46 mm, heating set, rollerbed on can table, large can table plate, different colours (RAL).
