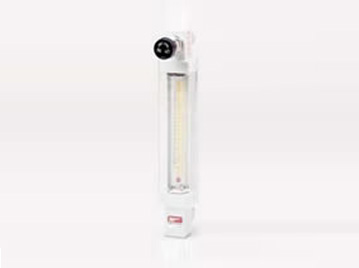

Purgemeter P-400

The P-400 is a corrosion-resistance type purgemeter with all stainless steel construction. Panel installation and flange connection are possible.
Corrosive services
Measuring fluid Gases
Measuring range Air Min. 80 to 800 mL/min(nor)
Max. 6 to 60 L/min(nor)
Water Min. 5 to 50 mL/min
Max. 0.2 to 2 L/min
・ When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
・ When selecting a flow range,refer to the standard flow rate table.
Range ability 10 : 1
Indication accuracy ±3% F.S.
Fluid pressure Max. 1MPa(Max. 0.5MPa for PVC)
Fluid temperature Max. 120℃(Depends on the gasket material)
(Max. 60℃ for PVC)
Material Wetted part SCS14/SUS304, SCS14/SUS316, PVC
Tapered tube Heat-resistant glass
Gasket Nitrile rubber (NBR)(Max. 80℃)
Chloroprene rubber (CR) (Max. 80ºC)
Fluoro rubber (Max. 120ºC)
PTFE(Max. 120℃) not applicable to PVC body
・The maximum fluid temperature for each gasket material may vary depending on usage and ambient conditions.
Mounting plate SPCC, SUS304
Cover Acryl, SPCC, SUS304
Process Connection Rc : 1/4"(Standard), 1/8", 3/8", 1/2"
NPT : 1/8", 1/4", 3/8", 1/2"
Flange : 10A, 15A, 20A, 25A
Mounting Lock nut mount on panel front (Standard)
Flange connection
With stand
Mass approx. 0.9kg
