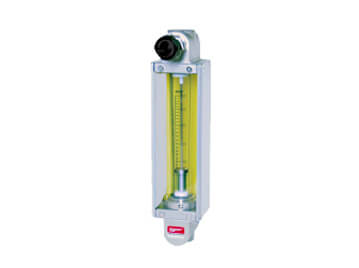

Purgemeter P-510

The P-510 is a purgemeter for large flow rates with the same face-to-face dimension as the P-200 for small flow rates.
General purpose (large flow rate)
Measuring fluid Gases
Measuring range Air Min. 2.5 to 25 L/min(nor)
Max. 60 to 600 L/min(nor)
Water Min. 0.1 to 1 L/min
Max. 3 to 30 L/min
・ When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
・ When selecting a flow range,refer to the standard flow rate table
Range ability 10 : 1
Indication accuracy ±5% F.S.
Fluid pressure Max. 0.8MPa
Fluid temperature Max. 120℃(Depends on the gasket material)
Material Wetted part SCS14/SUS304, SCS14/SUS316
Tapered tube Heat-resistant glass
Gasket Nitrile rubber (NBR)(Max. 80℃)
Chloroprene rubber (CR) (Max. 80ºC)
Fluoro rubber (Max. 120ºC)
Ethylene-propylene rubber (EPDM)(Max. 80℃)
・The maximum fluid temperature for each gasket material may vary depending on usage and ambient conditions.
Mounting plate SPCC, C2801P, SUS304
Cover Acryl
Process Connection Rc : 3/8"(Standard), 1/2", 3/4", 1"
NPT : 3/8", 1/2", 3/4", 1"
SW : 3/8"
VCR : 3/8", 1/2", 3/4"
Flange : 10A, 15A, 20A, 25A
Mounting Screw (M3) mount on panel front (Standard)
Lock nut mount on panel front (Standard)
Bezel mounting
Panel embedded mounting
Flange connection
With stand
Mass approx. 1.6kg
