Purgemeter P-100

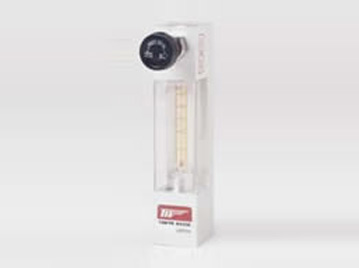

The P-060 is an acryl-mold, standard type purgemeter.
This ultra-compact, low-price purgemeter is ideal for lot production.
The P-060 is available in two sizes; 105 mm long, 22 mm wide and 114
mm long and 30 mm wide.
Built-in use for general-purpose equipment (small flow rate)
Measuring fluid Gases
Measuring range Air Min. 0.5 to 5 mL/min (nor)
Max. 5 to 50 L/min (nor)
Water Min. 5 to 50 mL/min
Max. 0.4 to 2 L/min
・ When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
・ When selecting a flow range,refer to the standard fl ow rate table.
Range ability 10:1 (10:2 for some models)
Indication accuracy ±5% F.S.
Fluid pressure Max. 0.8 MPa
Up to 0.5MPa for models with a PTFE gasket
Fluid temperature Max. 120ºC (Depends on the gasket material)
Material Wetted part SUS304, SUS316
Tapered tube Heat-resistant glass
Gasket Nitrile rubber (NBR) (Max. 80℃)
Chloroprene rubber (CR) (Max. 80ºC)
Fluoro rubber (Max. 120ºC)
Ethylene-propylene rubber (EPDM) (Max. 80℃)
PTFE (Max. 120℃)
・The maximum fl uid temperature for each gasket material may
vary depending on usage and ambient conditions.
Mounting bracket Aluminum
Cover Polycarbonate
Process Connection Rc : 1/4"(Standard, 1/8"
NPT : 1/4", 1/8"
Mounting Lock nut mount on the panel front (Standard)
Bezel mounting
Panel embedded mounting
With stand
Mass approx. 0.5Kg
