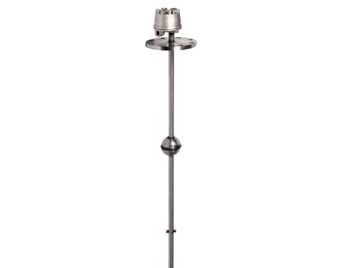

Float Type Level Transmitter FP7100

FP-7100 is a float type level transmitter. The liquid level is detected by float and converted into DC4 to 20mA current signal.
Very small flow rate can be covered:  Min. 0 - 0.5 L/h [Water] can be measured.
 Alarm output option available:    In addition to local indication type, alarm output version is also available.
 Compact design:   Easy installation onto instrument panel.
 Safety for high temperature and pressure: All metallic material construction covers tough applications!


Measuring object Liquids with density of 0.5g/cm3or more
(Max. viscosity 600mPa·s and without sticking and crystallization)
Level detecton By reed switch
Measuring range Min. 0 to 250mm
Max. 0 to 5000mm (Flameproof version is Max. 3810mm)
Max. pressure
Stainless steel float: 1MPa
PVC, PP and PFA lined float: 0.2MPa
Titanium float: 1.5MPa and 2.4MPa
Temp. range 0 to 100°C (0 to 60°C for PVC float)
Enclosure Weather proof (equiv. to IP65)
Flameproof (TIIS Exd IIB T6)
Intrinsically safe (Ex ia IIC T4)
Output DC 4 to 20mA
Output accuracy ± (20+0.002H) mmH: Measuring span (mm)
Process connection Standard: Tank top installation through flange
80A to 200A JIS5K, JIS10K, ANSI#150, JPI#150
Material availability
Lead pipe SUS304, SUS316, SUS316L, PVC, PP, PFA
Float SUS316, SUS316L(std.), PVC, PP, PFA, Titanium
Housing ADC12
