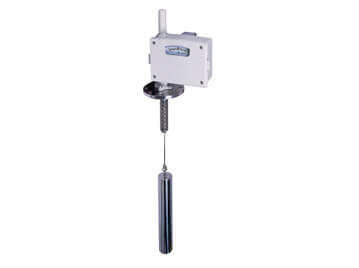

| Measuring theory |
Spring Balanced, Displacement |
| Measuring object |
Liquid (Viscosity: Max. 600 mPa·s. Liquid without sticking, crystallization, or freezing)
Level measurement: Standard range 0.7 to 1.3 g/cm3
Interface measurement: Density difference Min. 0.2g/cm3
*Other density range available on request. However, size of connection flanges
may differ from standard sizes. |
| Measuring range |
Max. 0 to 3000mm
Min. 0 to 300mm |
| Temp. range |
Std.: -10 to +150°C
Low temp. version: -40 to -11°C With radiation fin
High temp. version: +151 to +350°C With radiation fin |
| Press. range |
Low press. version: Max. 1MPa
Medium press. Version: Max. 2MPa
High press. version: Contact us for details
| Spring: |
SUS316, MA276, others |
| Displacer: |
SUS304, SUS316, SUS316L, MA276, PVC, others |
| Upper flange: |
Carbon steel, SUS304, SUS316, SUS316L, MA276 covered, others |
| Chamber: |
Carbon steel, SUS304, SUS316, SUS316L, others |
|
| Material construction |
|
| Process connection |
| Tank top without chamber |
|
|
Measuring range upto 1000mm: |
4B flange |
|
Measuring range more than 1000mm: |
3B flange |
| Tank top bolt-on internal chamber |
|
|
Measuring range upto 1000mm: |
5B flange |
|
Measuring range more than 1000mm: |
4B flange |
| Tank side external chamber: |
1-1/2B flange |
|
| Indication accuracy |
±1.5% F.S. (Based on mass conversion correction at factory calibration) |
| Output |
With alarm contact: Max. 6 point(SPDT), Set point accuracy: ±1%F.S.
With electric transmitter: DC 4 - 20mA, Output accuracy: ±1%F.S.
With pneumatic transmitter: 20 - 100kPa, Output accuracy: ±1%F.S. |
| Construction |
|
W: Weather proof |
E: Explossion proof |
| FS-110□: Local indication |
IP54 equivalent |
- - |
FS-115□: Local indication
+Alarm contact |
IP54 equivalent |
ｄ2G4 |
FS-313□: Local indication
+Pneumatic output |
IP54 equivalent |
- - |
FS-512□: Local indication
+Electric output |
IP54 equivalent |
Ex d llB T4 |
FS-517□: Local indication
+Electric output
+Alarm contact |
IP54 equivalent |
- - |
|
