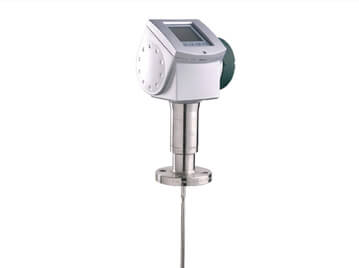

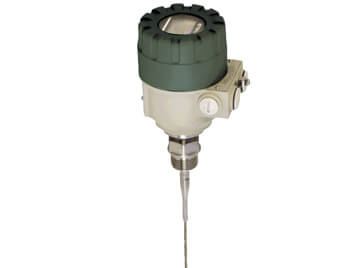

Guided Radar Gauge with 2 wire system TGR3000

TGR3000 is a 2-wire continuous level-measuring instrument using micro-pulse reflection. The measurements of the level of liquids, slurries and solids, and the interface of oil and water, etc. can be made. And analog output function is equipped.
The micro-pulse emitted from the level meter propagates along the fixed probe in the tank. And the level of the liquid or solid is measured by measuring the propagation time of the micro-pulse, which is reflected at the surface of the liquid or solid. The velocity of the micro-pulse propagation is hardly influenced by the change in temperature and pressure, so the high accuracy measurement can be made regardless of any change in the measurement condition.
And the loss of micro-pulse diffusion is so little that the measurement of low dielectric liquids and solids can be also made.
Very small flow rate can be covered:  Min. 0 - 0.5 L/h [Water] can be measured.
 Alarm output option available:    In addition to local indication type, alarm output version is also available.
 Compact design:   Easy installation onto instrument panel.
 Safety for high temperature and pressure: All metallic material construction covers tough applications!


Measuring object Measurable materials: Liquids, slurries and/or solids
(Less than 5mm of the grain diameter)
Measuring method: Time Domain Reflectrometry (TDR)
Measured variable: Level, distance, volume and/or interface
Probe type / length (Max.) Single rod probe / 3m
Twin rod probe / 3m
Single cable probe / 35m
Twin cable probe / 8m
Coaxial probe / 3m
Temperature of
process connection
-40 to +200°C
(Explosionproof type: Depending on Explosion Proof Specification)
Operating pressure 0kPa(abs) to 4MPa (Based on flange rate)
Dielectric constant More than 1.4 (Coaxial probe)
More than 1.6 (Twin rod probe, Twin cable probe)
More than 1.8 (Single rod cable, Single cable probe)

Interface measurement:
Dielectric constant of upper liquid is 1.6 to 10.
Difference of dielectric constant is over 20. (Lower liquid should be bigger.)
Thickness of interface should be over 50mm and the interface should be formed definitely.
Display 9 lines 160×160 pixels in 8-step grey scale (Wide graphic display)
with 4 buttons (It is possible to operate the buttons on the cover.)
Output Output 1: DC4 to 20mA (HART)
Output 2: DC4 to 20mA
Level measurement: ±3mm (Less than 10m)
±0.03% R.D. (More than 10m)
Interface measurement: ±10mm
(If dielectric constant not changed.)
Power supply
Output 1: DC14 to 30V (Non-Ex, Ex i)
DC20 to 36V (Ex d)
Output 2: DC10 to 30V (Non-Ex, Ex i, Ex d)
Material Housing: Aluminum
Probe: Rod type / SS316L (Option: Hastelloy®C-22)
Cable type / SS316L
Coaxial type / SS316L (Option: Hastelloy®C-22)
Seal: FKM (-40 to +200°C)(Option: Kalrez®6375(-20 to 200°C))
Process connection: SS316L (Option: Hastelloy®C-22)
Process connection 40A, 50A, 80A, 100A JIS10K Flange
1-1/2B, 2B, 3B, 4B, 6B, 8B 150lbRF ANSI Flange
1-1/2B, 2B, 3B, 4B 300lbRF ANSI Flange
3/4, 1, 1-1/2 NPT Male thread
G3/4, 1, 1-1/2 Male thread
Protection class General type: IP66 (JIS0920, IEC 60529 Equivalent to Jet-proof)
Explosion-proof type: EEx ia IIC T6...T3
EEx d [ia] IIC T6...T3
